JBL Adapter Boombox 1 (Original)

$49 $59

Battery 400 ( For JBL Partybox Stage 320 & JBL Xtreme 4 )

$119

Battery 200 ( For JBL Partybox Club 120 )

$59

Premium Ticket for Ganzberg Super Idol Concert Season II (Koh Pich)

$14.99

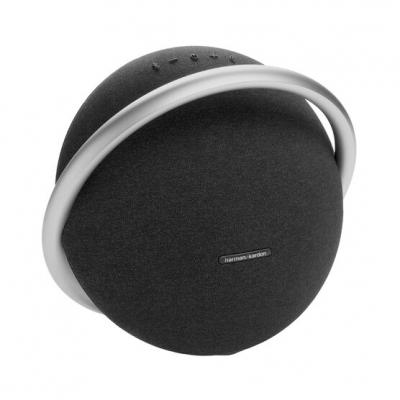

Harman Kardon Onyx Studio 8 (New 99%)

$169 $249

JBL Junior 320BT (New Arrival)

$50

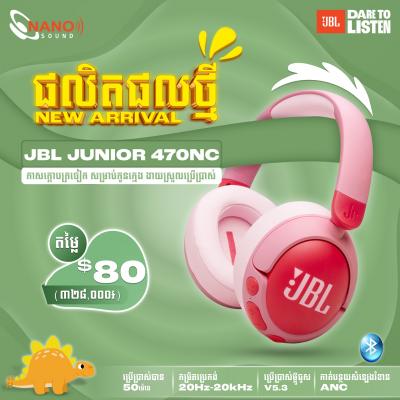

JBL Junior 470NC (New Arrival)

$80

Microphone JBL VM200 | New Arrival

$299

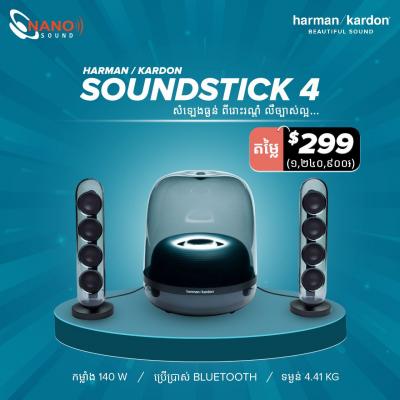

HK Soundstick 4

$299

ស្អាត សំឡេងធ្ងន់

កម្លាំងសំឡេង 140 W

ប្រើប្រាស់ Bluetooth

ទម្ងន់ 4.41Kg

JBL KX 180 | Echo

$300 $369

អេកូ JBL KX180

ប្រភេទ Digital Processor

អាចប្រើជាមួយ 5.1 Surround Sound

អាចកែសំឡេងច្រៀងបាន

JBL KX180 Full Specifications:

The JBL KX180 is a professional-grade digital processor designed specifically for karaoke applications, offering a comprehensive suite of audio processing tools to enhance and fine-tune both music and vocals.

Key Features:

Two groups of microphone inputs.
15-band Parametric EQ (PEQ) and compressor for each microphone input.
Three levels of feedback inhibition for each microphone input.
Independent control of Echo and Reverb parameters.
Two pairs of RCA connectors and one optical connector for music input.

15-band PEQ for music input.

Three levels of Excitement for music input.

Six output channels: Right, Left, Center, Subwoofer, Surround Right, and Surround Left.
10-band PEQ for Right and Left outputs.
7-band PEQ for Center and Surround outputs.
5-band PEQ for Subwoofer output.
Compressor provided for each output channel.
Two independent recording (REC) channels that can be paired into stereo.
Authority control for front panel controls.
Storage and recall of up to 10 presets.
Switchable Dance or Sing mode for each microphone input channel (manual or automatic).
USB 2.0 connection for computer-based configuration.

Technical Specifications:

Feature	Specification
Mic Input Type	3 x 1/4” unbalanced
Impedance	7.5K Ohms
EIN	<-110dBu, 20KHz Bandwidth
Level Control	–∞ to +0.8dBu
Line Input Type	RCA unbalanced, left & right
Impedance	10K Ohms
XLR Output Type	Unbalanced
Level	0dBu Nominal, +14.2dBu Maximum
Impedance	50 Ohms
RCA Output Type	Unbalanced, left & right
Level	+17.6dBu Max (Mic), +13.4dBu Max (Music)
Impedance	115 Ohms
Frequency Response	20Hz~20KHz ≤ ±1.0dB
THD+N	<0.06% 20Hz to 20KHz
Dynamic Range	>100dB
A/D Conversion	24bit, 48KHz
DSP Processor	High-performance 32-bit/40-bit floating-point
Carrier Frequency	38KHz
Format	NEC
IR Remote Distance	Device dependent
IR Remote Angle	Device dependent
Computer Connection	USB 2.0
AC Power Supply	AC 220V/50Hz (some models support AC 100~240V 50/60Hz)
Dimensions (W x D x H)	485 x 205 x 47mm
Net Weight	2.8Kg
Gross Weight	3.47Kg

Audio Processing Details:

Microphone Inputs: Each of the two microphone input groups features a 15-band parametric EQ for detailed tonal shaping and a compressor to control the dynamic range of the vocal signal. Three levels of feedback inhibition help prevent unwanted squealing and howling. Independent Echo and Reverb controls allow for creating a wide range of vocal effects.
Music Input: The music input section offers a 15-band parametric EQ to adjust the overall sound of the backing tracks and three levels of "Excitement" which likely refers to some form of sonic enhancement to add clarity or punch.
Outputs: The KX180 provides six discrete output channels for flexible speaker configurations, including main left/right, a dedicated center channel for vocals, a subwoofer output for low-frequency reinforcement, and surround left/right channels for a more immersive experience. Each output channel has its own parametric EQ (10-band for main L/R, 7-band for center/surround, and 5-band for subwoofer) and a compressor for fine-tuning the sound and preventing clipping.
Echo and Reverb: The unit offers independent control over echo and reverb parameters, likely including settings for delay time, feedback, level, and EQ shaping for each effect. Some sources mention five reverb effects: Room, Small Hall, Large Hall, Vocal, and Custom, with detailed parameter adjustments available in Custom mode.
Dance and Sing Modes: These modes provide quick access to optimized settings for different performance styles. They can be selected manually or automatically, suggesting some form of intelligent detection or triggering.
Presets: The ability to save and recall up to 10 presets allows users to store their preferred settings for different venues, singers, or song types.

Connectivity:

Microphone Inputs: 3 x 1/4" unbalanced jacks.
Music Inputs: 2 x RCA unbalanced (left/right), 1 x Optical.
Main Outputs: 2 x XLR unbalanced (left/right), 2 x RCA unbalanced (left/right).
Center Output: 1 x RCA unbalanced.
Subwoofer Output: 1 x RCA unbalanced.
Surround Outputs: 2 x RCA unbalanced (left/right).
Record Output: 2 x RCA unbalanced (left/right).
Computer Connection: 1 x USB 2.0 (Type-B) for software control and preset management.

Overall, the JBL KX180 is a versatile and feature-rich digital processor tailored for karaoke systems, offering extensive control over audio signals to deliver high-quality sound for both music and vocals.

- ថាមពលថ្មអាចប្រើប្រាស់	:	បានខ្ទង់ 15ម៉ោង
- មានប្រព័ន្ធការពារទឹក	:	IPX7 Waterproof
- ប្រើប្រាស់	:	USB-C សម្រាប់សាក
- អាច pair speaker	:	ពីរក្នុងពេលតែមួយបាន
- មានដៃសម្រាប់យួរ	:	ងាយយកតាមខ្លួន
- កម្លាំងសម្លេង	:	20 វ៉ាត់
- សម្លេងពិរោះ	:	បុកបាសធ្ងន់
- រូបរាងប្រណិត	:	រឹងមាំ
- Bluetooth	:	5.0
- មានការធានា	:	រយៈពេលមួយឆ្នាំ
